Spesifikasi Suzuki DL ABS-650V-Strom - 2012

| comments

Suzuki DL ABS-650V-Strom. Suzuki akhirnya mengeluarkan jenis motor terbaru yaitu dengan tipe Suzuki DL ABS-650V-Strom konsep 2012. Motor terbaru dengan model lebih tinggi, dan lebih ringan dari pendahulunya dan fitur mesin diperbarui.Dengan model gaya yang ramping yang menampilkan kombinasi serta body dicat penuh ekspresi dan fungsional komponen resin hitam menonjolkan profil yang lebih sporty.Sebuah pilihan Aksesoris Suzuki Asli, dirancang untuk kecocokan, kelancaran lebih mudah dengan Suzuki DL ABS-650V-Strom, berikut gambar dengan spesifikasinya.

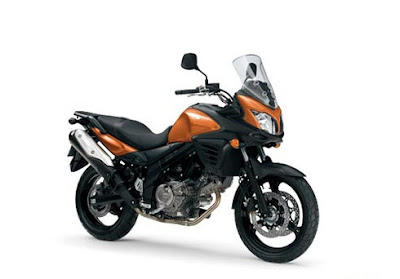

Suzuki DL ABS-650V-Strom-Gambar Foto Modifikasi Motor Terbaru.jpg

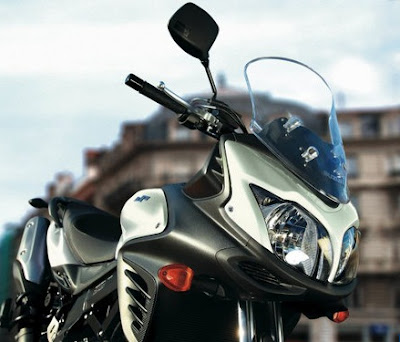

Suzuki DL ABS-650V-Strom-Gambar Foto Modifikasi Motor Terbaru.jpg

Suzuki DL ABS-650V-Strom-Gambar Foto Modifikasi Motor Terbaru.jpg

Data Spesifikasi
Engine and transmission
Engine type: 2 cylinders, 4-stroke, 90° V-twin
Displacement: 645 cc (39.41 cubic inches)
Bore × stroke: 81 mm × 62.6 mm (oversquare - shortstroke)
Cooling system: Water cooled
Power: 66.62 HP (49 kW) @ 8800 rpm (cranksh)
Torque: 60 Nm (6.12 kg-m) @ 6400 rpm (cranksh)
Throttle: Cable operated
Valves
Valve train: DOHC, variable
Valves per cylinder: 4
Fuel and ignition
Sparks per cylinder: 1
Fuel supply system: Fuel injection
Ignition type: Digital CDI
Compression: 11.2:1
Engine mounting: Transverse
Lubrication system: Wet sump
Gear box: Manual 6-speed
Clutch: Wet, multiple discs, cable operated
Final drive: Chain
Spark plug pipe type: NGK, CR8E
Motor oil: Synthetic, 10W/40
Starter: Electric
Dimensions
Physical measures
Length: 2290 mm
Width: 835 mm
Height: 1405 mm
Wheel base: 1560 mm
Trail: 110 mm
Seat height: 835 mm
Weight
Curb weight: 214 kg
Chassis and suspension
Frame type: aluminium, twin spar
Front
Suspension: Cartridge
Suspension travel: 160 mm
Fork angle: 26°
Brake: Twin Disk, Ø310 mm
Tire: 110 / 80 R19 R
Tire pressure: 2.25 bar, with pillion: 2.25 bar withpilion
Rear
Suspension: mono shock, Swingarm
Suspension travel: 163 mm
Brake: Disk, Ø260 mm
Tire: 150 / 70 R17 R
Tire pressure: 2.5 bar, with pillion: 2.8 bar withpilion
