Spesifikasi Aprilia shilver 750 streetfighter 2011

| comments

gambar foto modifikasi motor Aprilia shilver 750 streetfighter 2011.jpg

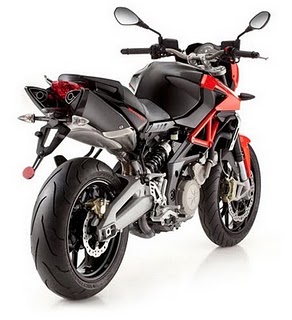

gambar foto modifikasi motor Aprilia shilver 750 streetfighter 2011 2.jpg

Spesifikasi:

Engine: Aprilia V90 Four stroke longitudinal 90° V twin. Liquid cooling. Double overhead camshaft with mixed gear/chain drive; four valves per cylinder. Euro 3.

Fuel: Unleaded petrol.

Bore x Stroke: 92 x 56,4 mm

Total displacement: 749,9 cc

Compression ratio: 11 : 1

Maximum power at the crank: 95 HP at 9000 rpm.

Maximum torque at the crank: 8.25 kgm at 7000 rpm.

Fuel system: Integrated engine management system. Injection with Ride by Wire technology control of the throttle bodies

Ignition: Digital electronic, integrated with the injection

Starting: Electric

Exhaust: Two in one system in 100% stainless steel with three-way catalytic converter and Lambda probe

Generator: 450 W at 6000 rpm.

Lubrification: Wet sump

Gear box: six speed, transmission ratio: 1° 36/14 (2.57) 2° 32/17 (1.88) 3° 30/20 (1.5) 4° 28/22 (1.27) 5° 24/25 (0.96) 6° 23/26 (0.88)

Clutch: Multi-plate in oil bath, hydraulically operated.

Primary drive: Spur gears, transmission ratio: 60/31 (1.75)

Final drive: Chain Transmission ratio: 16/44

Frame: Modular steel trellis connected with high strength bolts to aluminium side plates. Detachable rear frame.

Front suspension: 43 mm upside-down fork. 120 mm wheel travel.

Rear suspension: Aluminium alloy swingarm with reinforcement truss. Hydraulic shock absorber adjustable in spring preload and rebound damping. Wheel travel: 130 mm.

Brakes: Front: Double stainless steel floating disc (Ø 320 mm ). Four piston radial calipers. Metal braided brake line. Rear: Stainless steel disc (Æ 240 mm) with single piston caliper. Metal braided brake line.

Wheels: In aluminium alloy Front: 3.50 X 17" Rear: 6.00 X 17"

Tyres: Radial tubeless; front: 120/70 ZR 17 rear: 180/55 ZR 17

Dimensions: Overall length: 2265 mm Overall width: 800 mm (at handlebars) Overall height: 1135 mm (at instruments) Seat height: 810 mm Wheelbase: 1440 mm Trail: 109 mm Rake angle: 25.7°

Dry weight: 189 Kg

Fuel tank capacity: 16 l
