Kawasaki Foto Modif Dan Spesifikasi (Z1000SX-Z1000) - 2011

| comments

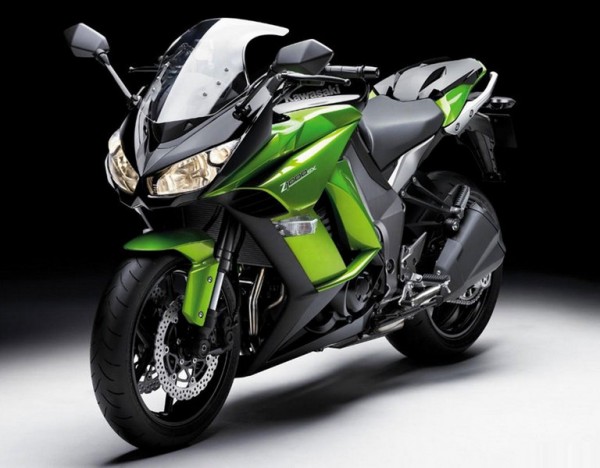

Gambar Foto KAWASAKI Z1000SX

   2011 kawasaki z1000sx
2011 kawasaki z1000sx.jpg



2011 kawasaki z1000sx.jpg


2011 kawasaki z1000sx.jpg


2011 kawasaki z1000sx.jpg

Spesifikasi KAWASAKI Z1000SX  2011

Tipe Mesin Liquid-cooled, 4-stroke In-Line Empat
Pemindahan 1.043 cm3
Diameter x stroke 77,0 x 56,0 mm
Rasio kompresi 11.8:1
Valve / Induction system DOHC, 16 katup
Sistem bahan bakar bahan bakar injeksi:? 38 mm x 4 (Keihin) dengan oval-throttle sub
Ignition Digital
Mulai Electric
Pelumasan paksa pelumasan, bah basah

Drivetrain

Transmisi 6-speed, return
Final Drive Sealed chain
Final pengurangan rasio 2,733 (41/15)
Kopling basah multi-disc, manual
FRAME
Tipe Frame Aluminium twin-tube
Roda perjalanan, depan 120 mm
Roda perjalanan, belakang 138 mm
Tirus, depan 120/70ZR17M/C (58W)
Tirus, belakang 190/50ZR17M/C (73W)
Rake / Trail 24.5 ° / 102 mm
Sudut kemudi, kiri / kanan 31 ° / 31 °
SUSPENSI
Suspensi, depan 41 mm garpu terbalik dengan kompresi stepless dan rebound
redaman dan musim semi preload penyesuaian
Suspensi, belakang Horisontal Back-link, gas bermuatan, dengan stepless rebound
musim semi redaman dan gaya cam preload penyesuaian
Rem
Rem, depan Dual semi-floating 300 mm petal disc
Dual radial-mount, menentang 4-piston
Rem, belakang Single 250 mm petal disc
Single-piston
DIMENSI
Dimensi (L x W x H) 2.105 x 790 x 1.170/1.230 mm
Wheelbase 1.445 mm
Ground Clearance 135 mm
Kursi tinggi 822 mm
Massa Curb 228 kg / 231 kg (ABS)
Bahan bakar kapasitas 19 liter

KINERJA

Daya maksimum 101.5kW {138} PS / 9.600 rpm
Torsi maksimum 110 N m {11.2 kgf • m} / 7.800 rpm?

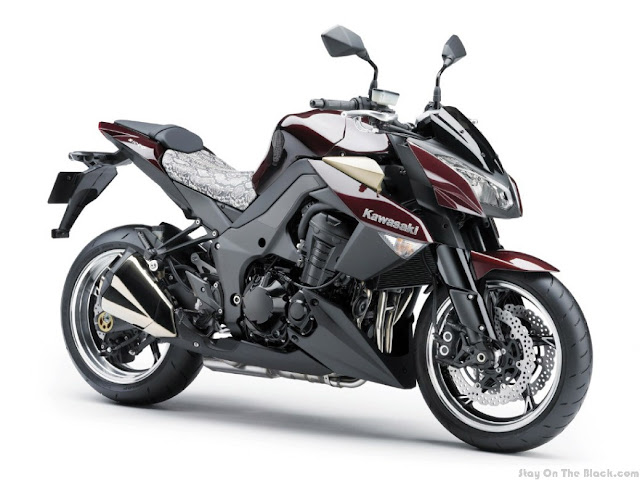

Gambar Foto KAWASAKI Z1000

tuning Kawasaki Z1000 Roaring.jpg



2011 kawasaki Z1000.jpg



2011 kawasaki Z1000 3.jpg



2011 kawasaki Z1000 Blackbrown.jpg



2011 kawasaki Z1000 Black small.jpg

Spesifikasi Kawasaki Z1000

Engine: Four-stroke, liquid-cooled, DOHC, empat katup per silinder, inline-empat
Pemindahan: l1043 cc
Diameter x Langkah: 77,0 x 56.0mm
Comp Ratio: 11.8:1
Sistem Bahan Bakar: DFI ® dengan empat 38mm Keihin throttle tubuh, oval sub-throttle
Ignition: Advance Digital TCBI
Transmisi :6-Speed
Final Drive: X-Ring Chain
Frame Type: Backbone Aluminium
Rake / Trail: 24.5 deg. / 4.1 masuk
Suspensi Depan / Wheel Travel: 41 mm inverted cartridge fork dengan kompresi stepless dan rebound damping, musim semi adjustable preload / 4.7 in
Rear Suspension / Wheel Travel: monoshock Horizontal dengan stepless rebound damping, musim semi adjustable preload / 5.4 in
Ban Depan Ukuran: 120/70 ZR17
Ukuran Ban Belakang: 190/50 ZR17
Wheelbase: 56,7 in
Rem Depan: Dual 300mm petal-type rotor dengan radial-mount kaliper empat-piston
Rem Belakang: Single 250mm petal-type rotor dengan kaliper piston tunggal
Kapasitas Bahan Bakar: 4.0 gal.
Seat Height: 32,1 in
Panjang Keseluruhan: 82,5 in
Lebar Keseluruhan: 31,7 in
Keseluruhan Tinggi: 42.7 in
